5.7 Inch 320*240 AUO G057QTN01.4 LCD Screen

Product Categories
Hangzhou Zoyo chuxian Intelligent Technology Co., Ltd.
Contact Now

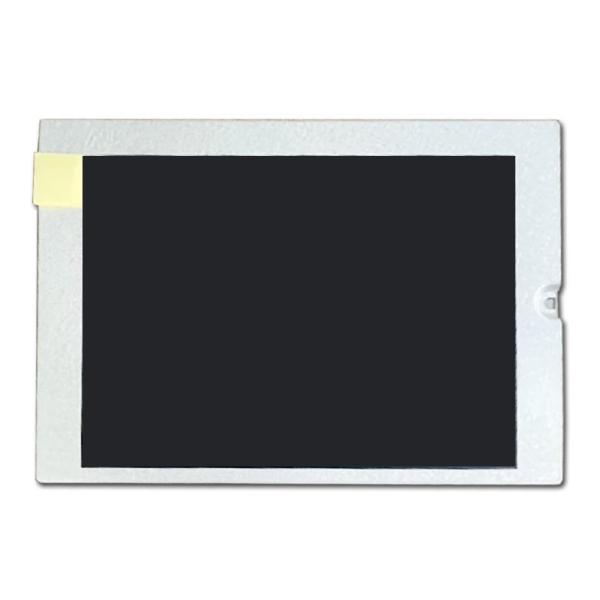

5.7 Inch 320*240 AUO G057QTN01.4 LCD Screen

  • 1
  • 2

Brand Name : AOU

Model Number : AUO G057QTN01.4

Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

Place of Origin : Hangzhou, CHINA

MOQ : 1

Price : $2~$500 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5k-20k pieces per day

Delivery Time : 3-4 weeks

Packaging Details : CUSTOMIZED

Size(inch) : 5.7

Resolution : 320(RGB)×240

Viewing Angle : TN

Active Area(mm) : 115.2(W)×86.4(H)

Module Size(mm) : 144(W)×104.6(H)×9.8(D)

Interface : CMOS

Operating Temperature : -30~85

Luminance(nits) : 500

Contact Now

General Specification

Parameter Specification Unit
LCD size 5.7 (Diagonal) inch
Number Of Pixels 320(RGB)×240 pixels
Active Area (W*H) 115.2(W)×86.4(H) um
Outline Dimension (W*H*T) 144(W)×104.6(H)×9.8(D) mm
Viewing angle(RLUD) 80/80/70/70 mm
View Direction TN
Interface CMOS
Brightness 500 cd/m²
LED Lifetime 100k hrs
Contrast Ratio 700
Operating Temperature -30℃-85℃
Storage Temperature -30℃-85℃

The AUO G057QTN01.4 LCD Screen measures 5.7 inches and comes with a resolution of 320 x 240 pixels. It is capable of presenting clear and vivid visuals that can be applied to a diverse range of applications.

This screen is designed using a TN (Twisted Nematic) panel, which enables it to offer reliable performance. Thanks to this, it is well-suited for various environments. Boasting a high brightness of 500 nits, it guarantees excellent visibility even when in brightly lit conditions.

The G057QTN01.4 is equipped with a 33-pin CMOS interface. This allows for easy and seamless integration with a wide variety of microcontrollers and systems. It can operate efficiently within a broad temperature range that stretches from -30°C to 85°C. Such a wide temperature range makes it an ideal choice for both indoor and outdoor applications, especially those in challenging environments.

Moreover, this A-grade product has a lifespan of 100,000 hours. This long lifespan ensures its durability and stable performance, which means it can effectively meet the requirements of industrial control systems, medical devices, and portable electronics.
